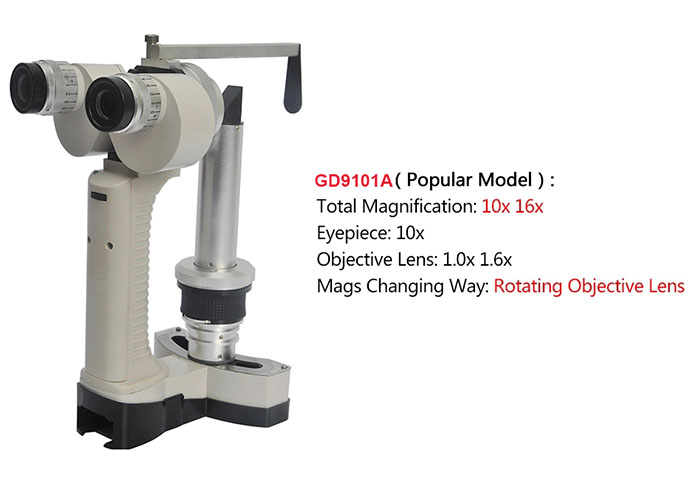

GD9101A Portable Ophthalmic Slit Lamp Hand Held Slit Lamp with CE 3
Magnifications
Features:

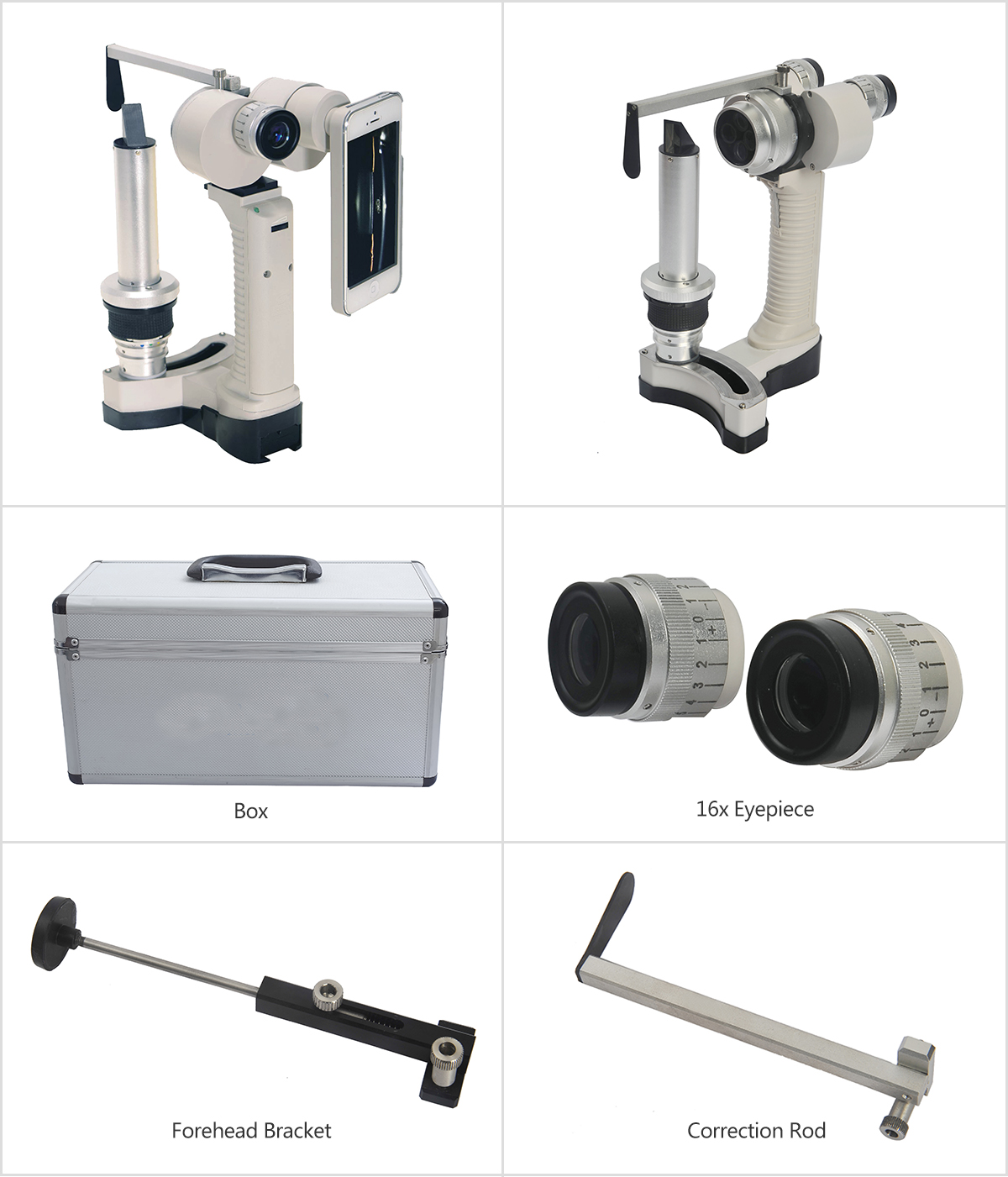

1. Configuration(SLM-6H) Portable Slit Lamp
2. with 10X,16X eyepieces
3. with Li-ion Battery, Battery Charger
4. With metal box
5. With focus stick, Forehead Bracket
Specifications:
| Model | GD9101B | GD9101 | GD9101A |
Microscope
| Microscope Type | Converging |
| Objective Lens | 10x | 10x,16x | 10x,16x |
| Eyepieces | 10x | 10x | 10x,16x |
| Total Magnifications | 10x | 10x,16x | 10x,16x,25x |
| Working Distance | 81mm |
| Intraocular Distance | 45-78mm |
| Diopter Adjustment | -8D~8D |
Illumination
| Slit Width | 0-12mm continuous |
| Slit Height | 12mm | 1-12mm | 1-12mm |
| Slit Angle | Horizontal ± 30 ° |
| Light Spot Diameter | 12mm | 1-12mm |
| Filters | Heat Absorption, Yellow, Redfree (green), Cobalt Blue |
| Illumination Bulb | White LED |
| Brightness | > 30000 Lux |
| Power | 5VA |
Power
| Charging Voltage | AC 100~240V, 50/60Hz |
| LED Working Voltage | DC 3V, 350mAh |
| Battery | Li-ion Battery; 7.4V, 680mAh, Full Battery can supply 5-6 hours
continuously |
| Weight | 700g (including battery) |
Product & Service
Products:
- Ophthalmic Instruments: Auto Refractometer, Phoropter, Auto
Projector, PD Meter, Trial Lens Set, LCD Vision Chart, Ophthalmic
Unit, Ophthalmic Motorized Table, Ophthalmoscope, Retinoscope etc;
- Lens Testing Device: Auto Lensmeter, UV Tester, Blue Blocking Lens
Tester, Stress Tester etc;
- Lens Lab Instruments: Auto Lens Edger, Hand Lens Edger, Groover,
Lens Driller, Ultrasonic Cleaner, Frame Warmer, Pliers &
Screwdrivers etc;
- Accessories: Lens Blocking Pads, Interliner etc.
Trade Conditions:
- Payment: TT, Western Union, L/C, Paypal;
- Lead Time: 7 - 14 working days to finish order;
- Warranty: 1 Year;
- Standard: ISO, CE, FDA
- After Sale Service: Lifelong.
