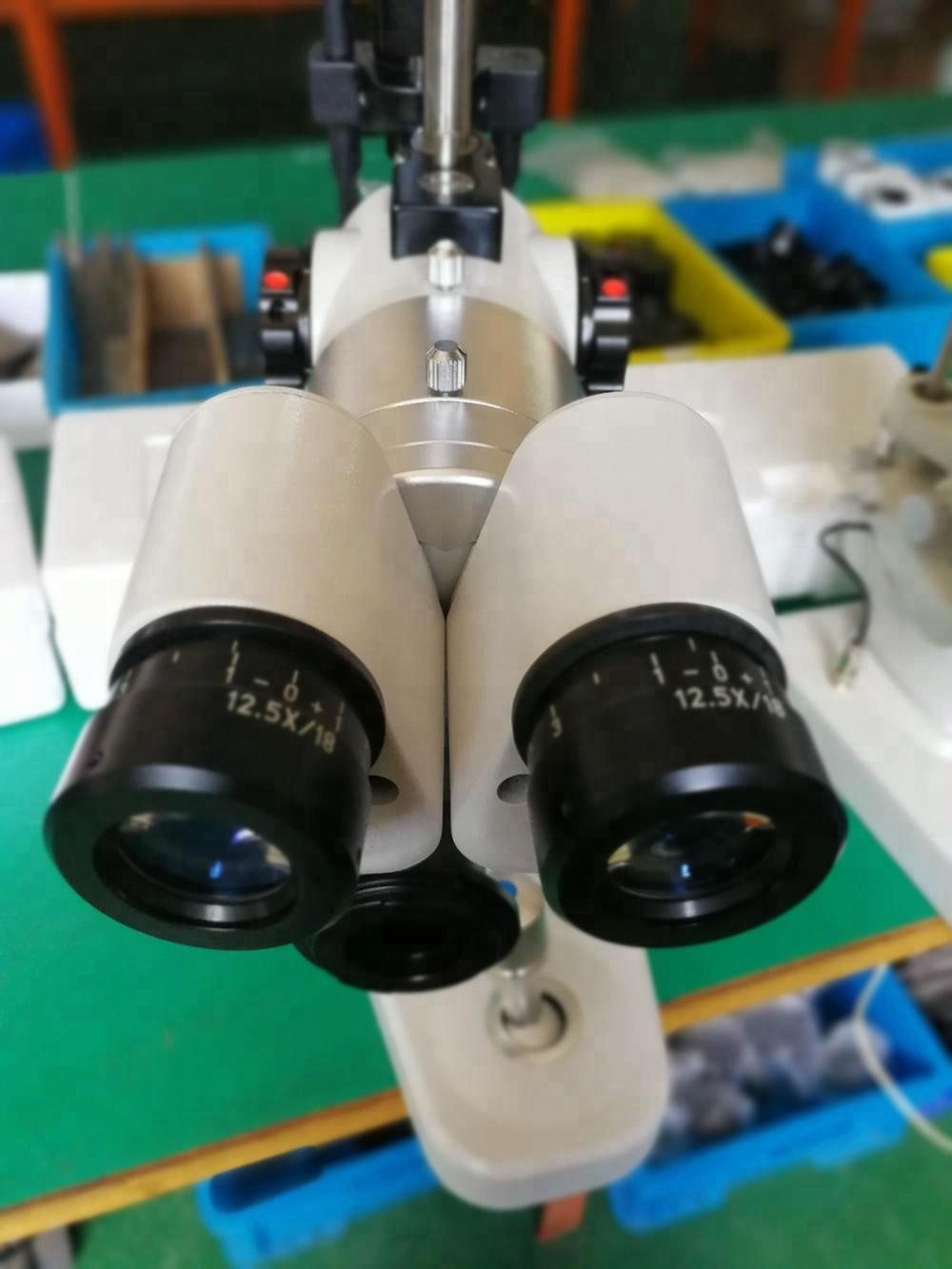

Galilean Stereoscopic Microscope Ophthalmic Slit lamp with Halogen
lamp 3 Magnifications GD9230
Feature:
1. All the optical lenses are moistureproof, mildewproof and
anti-reflected treated.
2. Large spot diameter, slit length reach to 14mm, more
comprehensive view of the eye condition.
3. Multi-coated optical glass technology, imaging is clear and
bright, the view field is wide.
4. Osram light bulbs, small heat, high-brightness, spot uniformity.
5. Handrail design, user-friendly and the convenience of patients.
6. All the joints can be connected by accessories with
international standards.
Specification:
| Property of slit lamp | Microscope Type | Galilean stereoscopic microscope |
| Magnification selection | 3 steps by drum rotation |
| Eyepiece | 12.5x |
Magnification Ratio (Field of view ) | 10×(φ22.5mm),16×(φ14mm), 25×(φ8.8mm) |
| PD adjustment | 50mm ~ 80mm |
| Diopter Adjustment | +7D ~ -7D |
| Base | Left and ritht move | 110mm |
| Dolly move | 90mm |
| Up and down move | 30mm |
| Chin rest | Up and down move | 80mm |
| Fixation lamp | red LED |
| Property of illumination | Slit width | 0 ~ 14mm continuous (at 14mm,slit becomes a circle) |
| Slit height | 1 ~ 14mm continuous |
Slit angle Slit beveling Light spot diameter | 0 ~ 1800 continuous 50,10 °,150,200 14mm ,10mm, 5mm , 3mm ,2mm ,1mm ,0.2mm and 1-14mm continuous |
| Filter | Heat Absorption ,Grey ,Red-Free ,Cobalt Blue |
| Illumination bulb | 12V 50W halogen lamp |
| Power | Input voltage frequency Power consuption
| 110V/220V AC 50/60 Hz 68VA |
| Weight and size | G.W N.W | 20kg 16kg |
| Main dimension | 690mm(L)× 440mm(W)× 420mm(H) |
