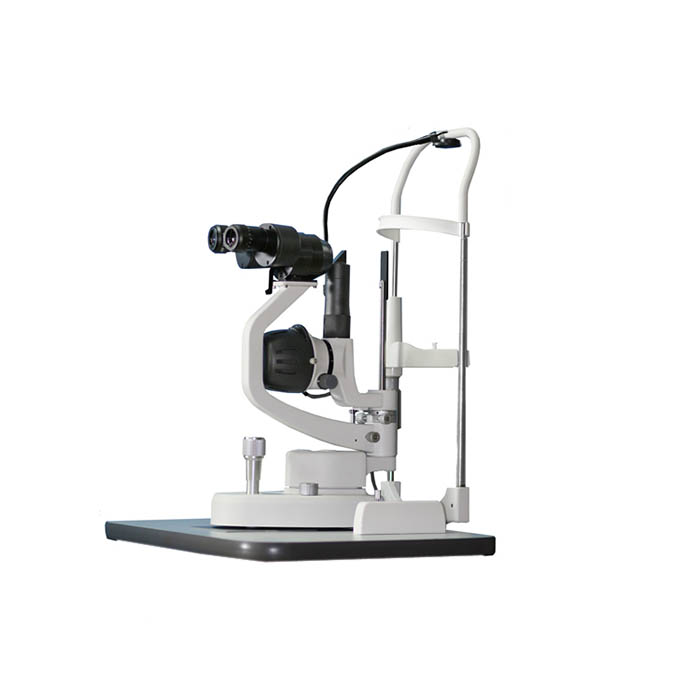

GD9011 2 Magnifications 10x and 20x Ophthalmic Slit Lamp Microscope
2 magnifications simple operation
Economical solution for opticians and ophthalmologists
Features:
1. zeiss style, 2 steps by objective lens rotation
2. excellent optical system ensures a clear and sharp image for
users
3. 14mm aperature is very fit for eye pre-checking of wearing
contact lenses and the corneal foreign object examination
4. 6V20W Osram halogen lamp is employed. It can provide strong and
stable lighting for observations. LED light source is optional.
5. Slit angle is adjustable from 0 to 180 degree. Horizontal
scanning is workable
6. Heat absorption filter, Red-free filter, and Cobalt Blue filter
are provided.
Specification:
1. Microscope:
Type: converging stereoscope
Magnification change: 2 steps by objective lens rotation
Total magnification Ratio: 10X, 16X
Eyepieces: 10X
Angle between eyepieces: 13º
Interpupillary adjustment: 52mm~78mm
Diopter adjustment: +-6D
Field of view: 16X (14.5mm), 10X (18mm)
2. Slit Illumination:
Slit width: Continuously variable from 0 to 14mm (at 14mm,slit
becomes a circle )
Slit length: Continuously variable from 1mm to 14mm
Lamp: 6V/20W Halogen Lamp
Slit angle: 0-180 (continuously adjustable both vertical and
horizontal)
Filters: Heat absorption, Red-free, Cobalt Blue
Aperture diameters: 14mm 8mm 3.5mm 0.5mm Continuously variable from
1mm to 14mm
Illumination: 50klx
3. Base:
Longitudinal movement: 90mm
Lateral movement: 100mm
Vertical movement: 30mm
Fine movement: 15mm
4. Chin-Rest:
Vertical movement: 80mm
Fixation: RED LED
5. Power:
Input voltage: 220V/110V~+-10%
Input frequency: 50Hz/60Hz
Power consumption: 30VA(max)
Output voltage: Lamp 6V (continuously adjustable)
Fixation 3V
6. Dimension & Weight:
Dimension 740mm x 450mm x 500mm
Gross weight: 22Kg
Net weight: 15kg
Working environment
Temperature: +5℃~+40℃
Relative humidity: ≤80%
Air pressure: 800hpa~1060hpa
7. Storing environment:
Temperature: -40℃~+55℃
Relative humidity: ≤93%
Air pressure: 700hpa~1060hpa
Transporting environment
Temperature: -40℃~+55℃
Relative humidity: ≤93%
Air pressure: 700hpa~1060hpa
